A Decor drawer with a Gridfinity grid in its floor - 42 mm cells, a half-grid channel down the right side, optional 6×2mm magnet slots, and a tear-away front. Same outside size as the Decor drawer, so it takes the same case and the same faceplates. Coming soon.

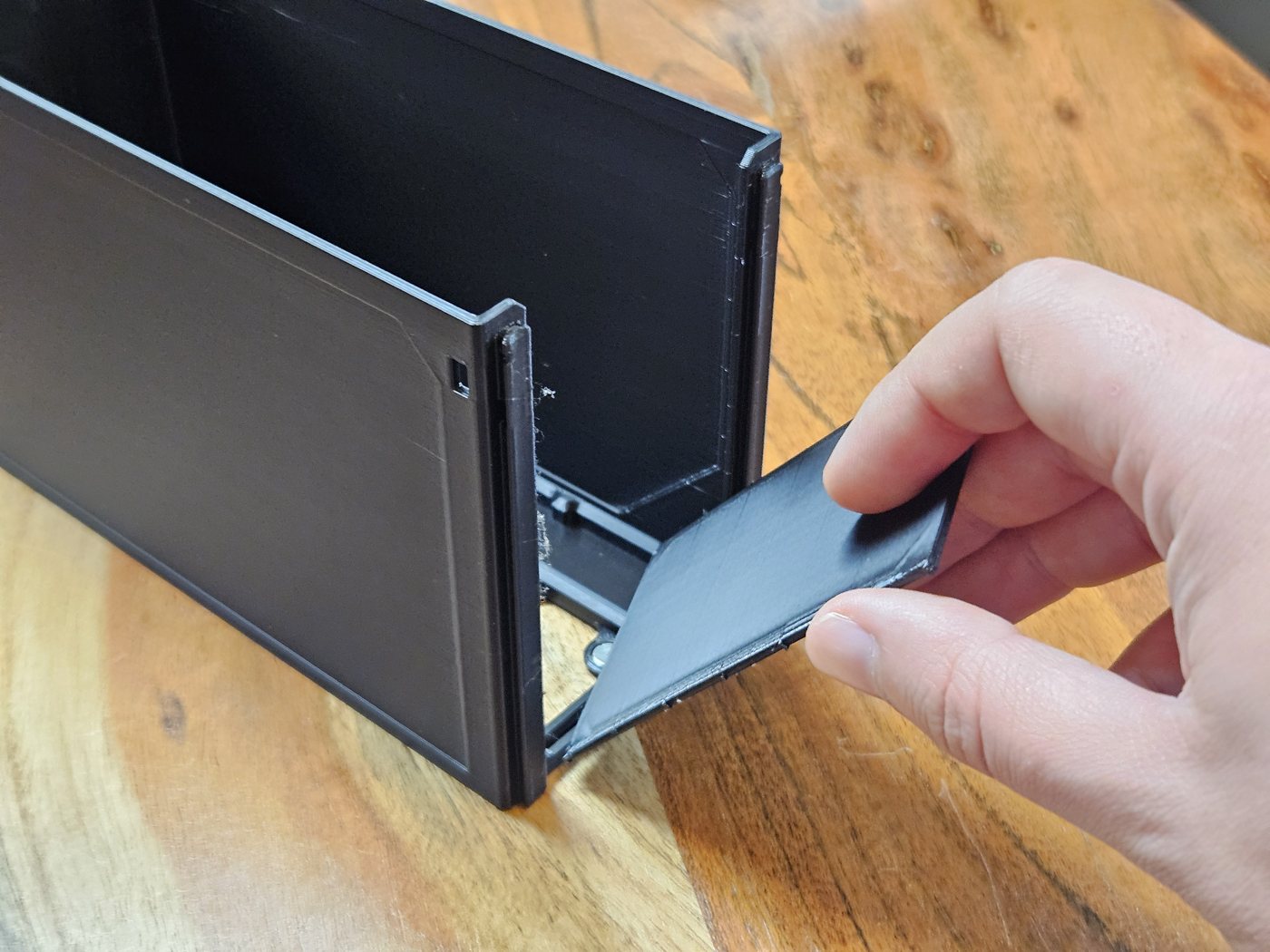

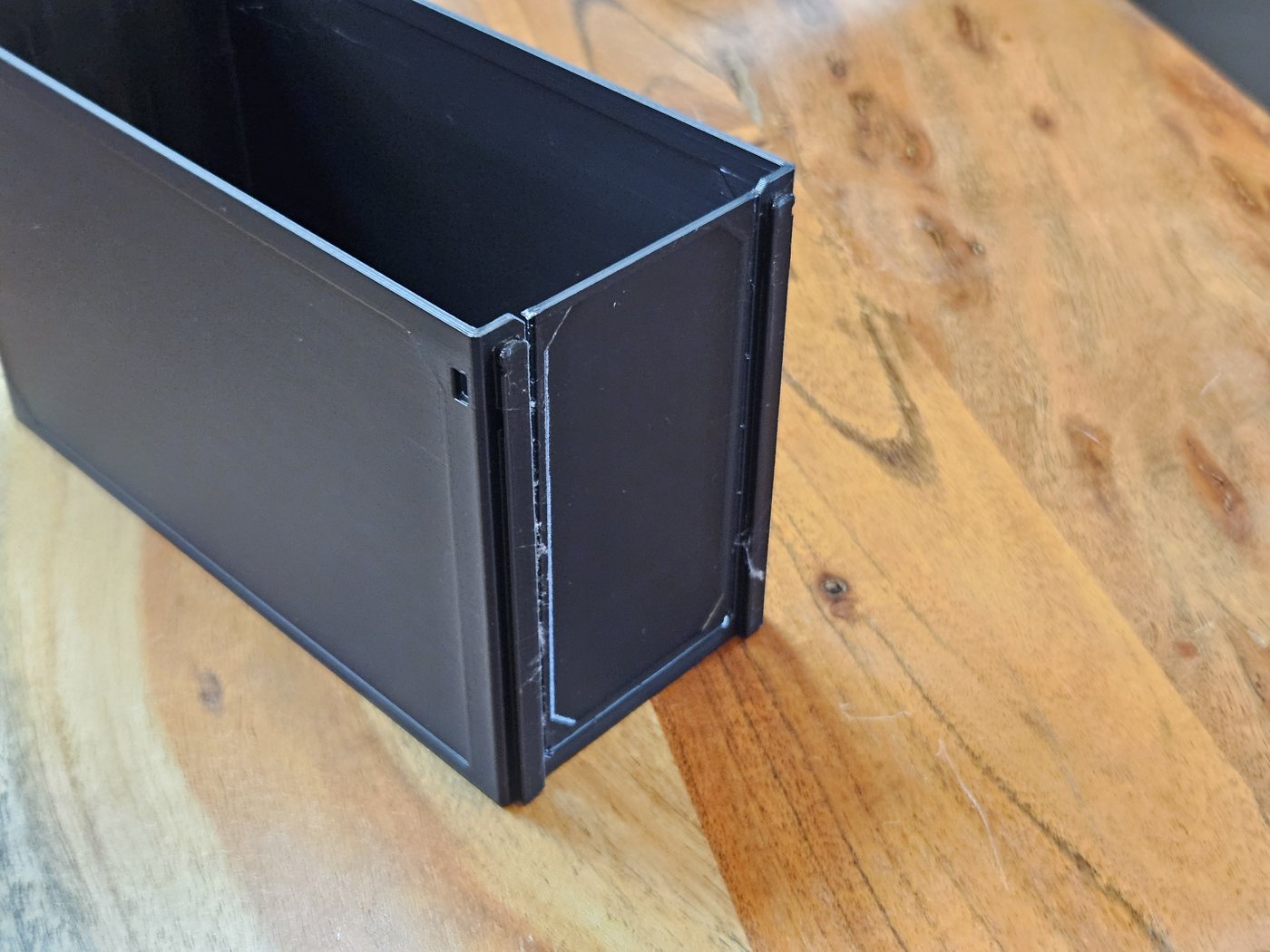

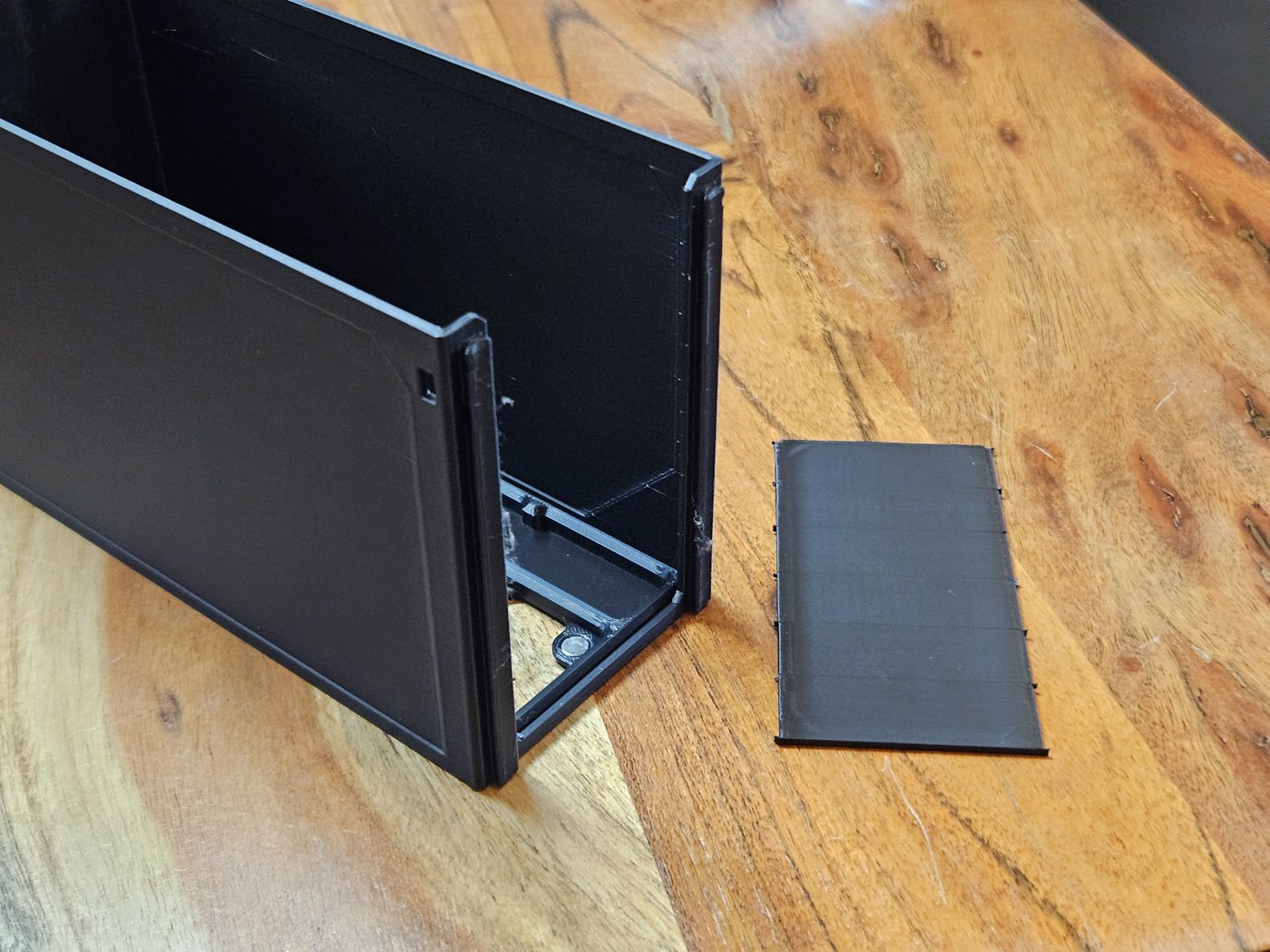

The designer has printed several and checked the fit in a case with a faceplate (September 2026). The outside matches the Decor drawer of the same size on all 60, but not every one of the 60 sizes has been printed. The tear-away front is optional. Left in, it does the faceplate back cover's job, so fit the faceplate without a back cover - the two would interfere. Take the front out and the faceplate back cover fits as on any Decor drawer.
Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
1W-1H decoded: 115 = collection depth class · 1W = 88mm wide · 1H = 56mm installed height
| System size | 1W × 1H |
|---|---|
| Installed size | 88 W × 56 H × 115 D mm |
| Gridfinity grid | 1 × 2 cells of 42 mm, plus a half-grid channel down the right side |
| Tallest bin | 42 mm overall |
| Print footprint | 88 × 115 mm |
| Print estimate | 48 g PLA · 1 h 28 min · 49 g PETG · 1 h 35 minEstimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. |
| Fits case | MODULITH 115 Case - 1W-1H |
| Connects to | MODULITH Rail · QuickLock |
This family is modeled but not published yet - every size arrives together at release.
Assembly in 3D lives in the 3D Build Studio. Same size as a Decor Drawer →
Technical details
Not published yet.
Model version v2609 · Coming soon
Choose another size
Width × height on the MODULITH grid (1W = 88mm · 1H = 56mm). Every size opens its own part page.
Works with this part for 1W-1H
What this part needs, takes and mounts with - each link opens the exact size where the size is fixed, otherwise the matching family.
Required to use this part
115 Case - 1W-1HFREESlides into the same-size 115 case - same outside as the Decor drawer of this size.
Recommended additions
Choose one faceplate series · 1 per drawer · The designer has printed several and checked the fit (September 2026); not every one of the 60 sizes has been printed
Takes the Essential Faceplate series in 1W-1H on its front, the same way a Decor drawer does. The tear-away front is optional: left in, the faceplate goes on without a back cover, because the two would interfere. Take the front out and the back cover fits.
Takes the Classic Faceplate series in 1W-1H on its front, the same way a Decor drawer does. The tear-away front is optional: left in, the faceplate goes on without a back cover, because the two would interfere. Take the front out and the back cover fits.
EdgeLabel Decor Faceplate - 1W-1HCLUB OR PURCHASETakes the EdgeLabel Faceplate series in 1W-1H on its front, the same way a Decor drawer does. The tear-away front is optional: left in, the faceplate goes on without a back cover, because the two would interfere. Take the front out and the back cover fits.
Classic Pro Decor Faceplate - 1W-1HCLUB OR PURCHASETakes the Classic Pro Faceplate series in 1W-1H on its front, the same way a Decor drawer does. The tear-away front is optional: left in, the faceplate goes on without a back cover, because the two would interfere. Take the front out and the back cover fits.
Chevron Decor Faceplate - 1W-1HCLUB OR PURCHASETakes the Chevron Faceplate series in 1W-1H on its front, the same way a Decor drawer does. The tear-away front is optional: left in, the faceplate goes on without a back cover, because the two would interfere. Take the front out and the back cover fits.
Optional upgrades
Drawer StoppersFREEKeeps this drawer from pulling all the way out - one Left + Right pair in the outermost positions, snapped into the case above or the Cover Lower over a top row. Extra positions add redundancy.
Magnet InsertsFREEOptional magnetic closure (retention, not a damped close) - one insert clips to the drawer back, one to the case back, and a purchased magnet seats in each. The 10×2 and 6×2 slot sizes are alternatives within one closure, never both (a Gridfinity Decor drawer has the 6×2 slots only); N52 magnets may need only one pair.
Compatible alternatives or customization
The standard Decor drawer in this size - a plain floor, and it takes the optional back cover.
Choose one handle series · Only with an Essential or Chevron faceplate - Classic, EdgeLabel, and Classic Pro print their grip in
Deco HandleFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
BlockBar HandlesFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
Crystal HandleFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
Explicit incompatibilities
Not for drawers - an extended bay takes no standard drawer. Extenders are height spacers for open bays.
Real builds
Photos: TXT-Tlusty · TXT-Tlusty · from In the Wild · real installations, not renders.
