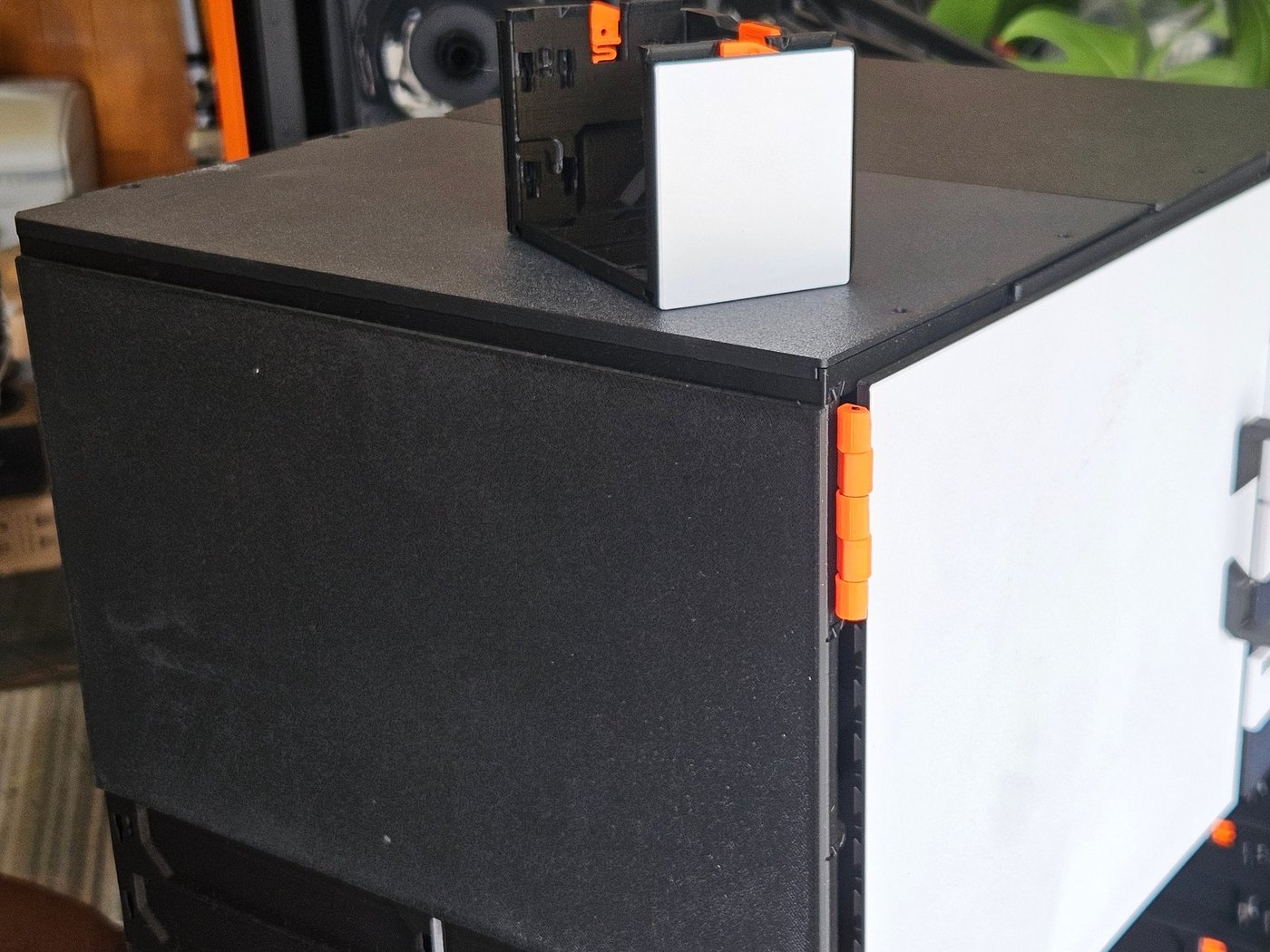

A clip-on panel for the outer side wall of a case. Hook it in, slide it down, and the ribs and windows of the wall disappear behind one clean face. One cover per exposed side wall, matched to the case height, any width. Prints face-down in one color, or two with the included 3MF (a thin Face over an everyday Core). Fits v2602 and newer cases, which is every case here. Sized per collection.
Prints face-down with no supports: 0.4 mm nozzle, 0.2 mm layers, 2 to 3 perimeters. For two colors, load the included 3MF on a multi-material printer, or slice the STL and add one filament change at 0.8 mm (after layer 4). Use two filaments that bond: silk PLA on PLA works, PLA on PETG peels apart. The designer test-printed and fitted them from the small 59-1H up to the 270-3H.
Installation guide: Tabletop Builds

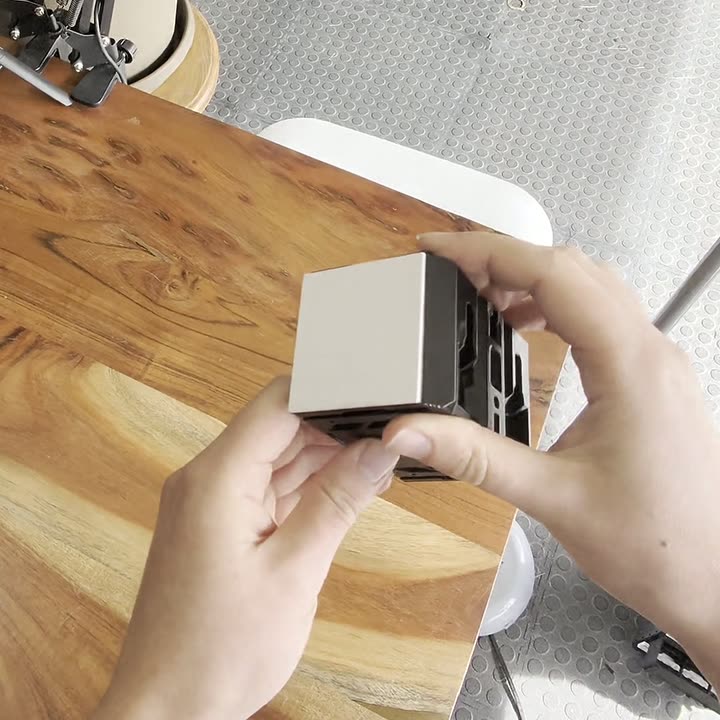

How it goes on
Hook it into the wall, slide it down, and it locks. Slide it up to take it off again.
Works with this part
What this part needs, takes and mounts with - each link opens the exact size where the size is fixed, otherwise the matching family.
Required to use this part
185 CasesFREEClips onto the outer side wall of a same-height 185 case of any width, with no hardware: hook it into the wall and slide it down to lock.
