Home / Builds / Tabletop Kits

Tabletop Kits

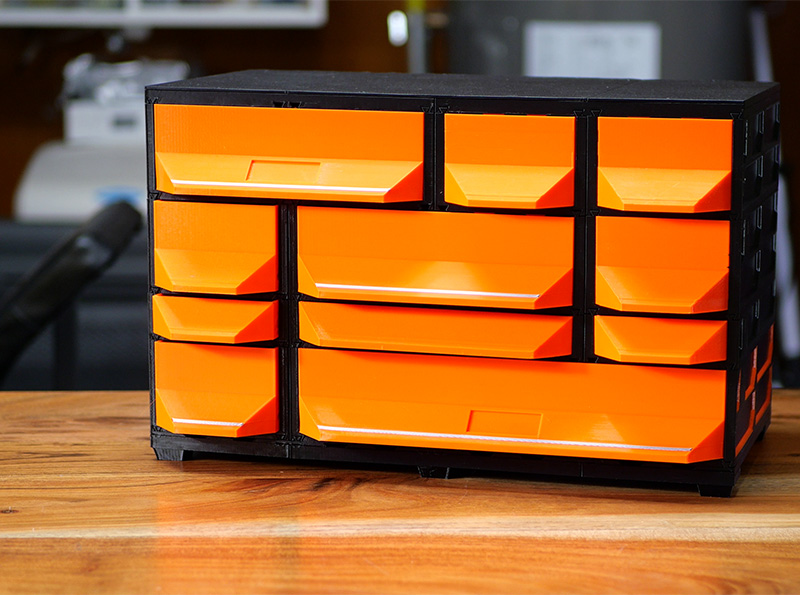

The Tabletop Kit is the freestanding version of the system: covers cap the top, foot rails tie the bottom row together, and TPU feet keep it planted - a rigid unit that sits on any surface. The whole kit prints; the faceplate grip is part of the print, so there is nothing you have to buy to finish one.

Two footprints

The 2W-2H starter is 3 drawers - a 2W wide drawer over two 1W drawers. The 3W-2H is 5 drawers across three columns; at that width the cover and foot-rail layers stagger brick-style, so the seams of one layer are bridged by the other and the base ties into one block.

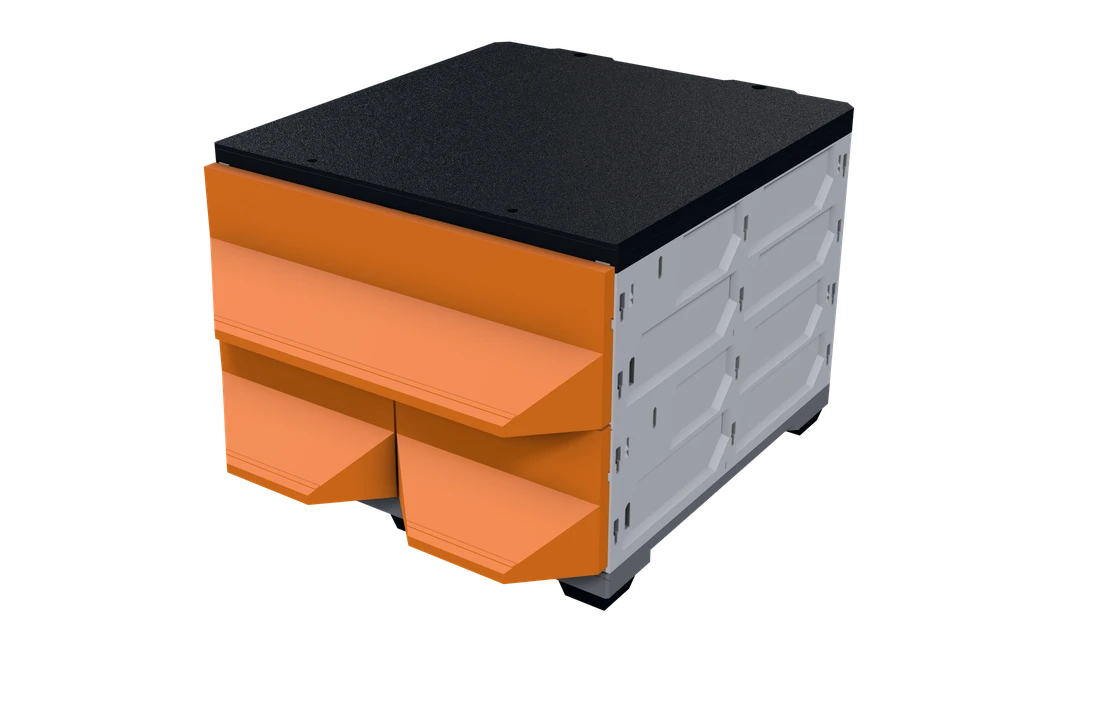

The 2W-2H starter kit: 3 drawers in a two-column case block on foot rails. — **2W-2H starter**3 drawers

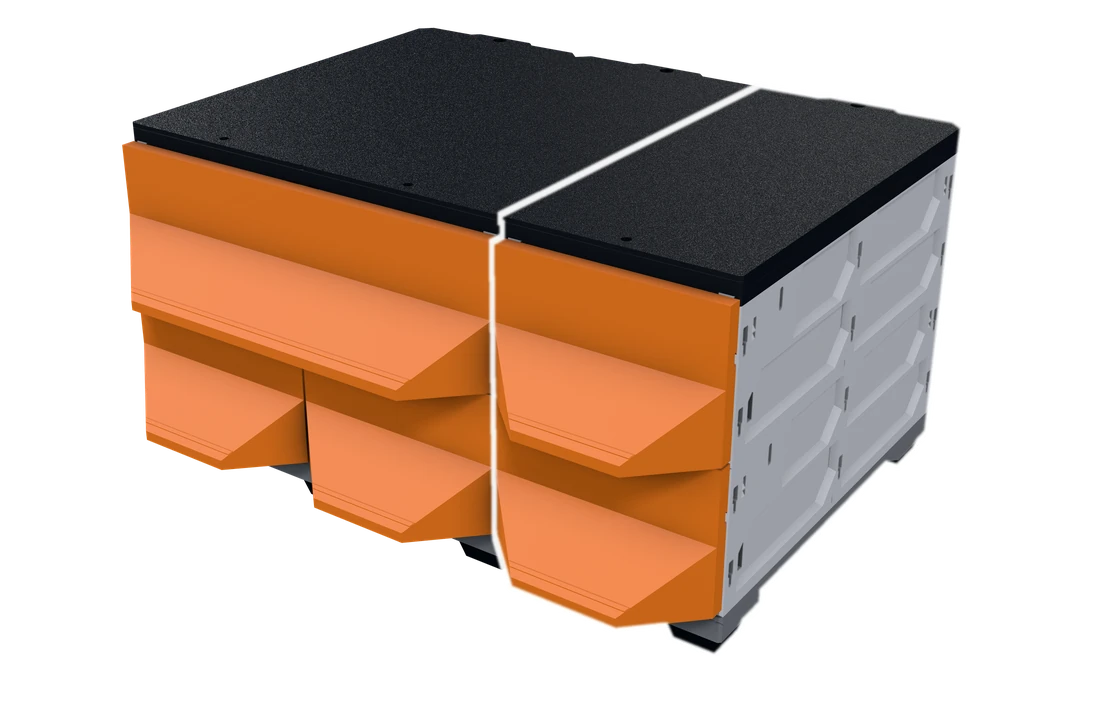

The 3W-2H kit: 5 drawers, one column wider, the added column outlined in white. — **3W-2H**5 drawers

Both shown in the 185 collection, from one camera and one crop, so the 3W really is wider on screen than the 2W. Outlined in white: the column the 3W adds.

The depth collection is the only other choice: the same kit exists in 115, 165, 185, 240 and 270mm depths. Pick by what the drawers should hold - each kit page lists the inside depth and the assembled footprint.

Pick your depth

115 Collection	Tabletop Kit 2W-2H 3 drawers · 39 pieces Tabletop Kit 3W-2H 5 drawers · 63 pieces	144 mm deep
165 Collection	Tabletop Kit 2W-2H 3 drawers · 39 pieces Tabletop Kit 3W-2H 5 drawers · 63 pieces	194 mm deep
185 Collection	Tabletop Kit 2W-2H 3 drawers · 39 pieces Tabletop Kit 3W-2H 5 drawers · 63 pieces	214 mm deep
240 Collection	Tabletop Kit 2W-2H 3 drawers · 39 pieces Tabletop Kit 3W-2H 5 drawers · 63 pieces	269 mm deep
270 Collection	Tabletop Kit 2W-2H 3 drawers · 39 pieces Tabletop Kit 3W-2H 5 drawers · 63 pieces	299 mm deep

Assembly help: the Tabletop Builds guide, or each kit's interactive 3D assembly guide in the Build Studio.
