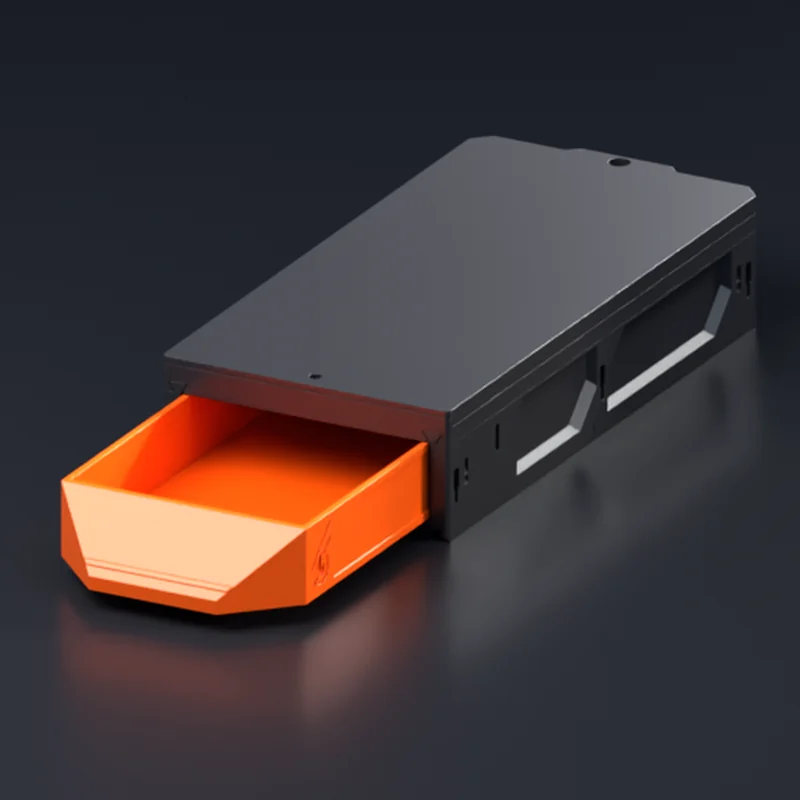

MODULITH 185 Classic Drawer - 1W-0.5H
formerly GEN2
Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
1W-0.5H decoded: 185 = collection depth class · 1W = 88mm wide · 0.5H = 28mm installed height
| System size | 1W × 0.5H |
|---|---|
| Installed size | 88 W × 28 H × 185 D mm |
| Inside (usable) | 71 × 20 × 171 mm (W×H×D) |
| Print footprint | 88 × 195 mm |
| Print estimate | 54 g PLA · 1 h 10 min · 56 g PETG · 1 h 13 minEstimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. |
| Fits case | MODULITH 185 Case - 1W-0.5H |
| Connects to | MODULITH Rail · QuickLock |
All 18 sizes live in one listing - in it, look for 185-1W-0.5H (some files write it 185-1W-05H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guides: Tabletop Builds · Under-Table Rails
Assembly in 3D lives in the 3D Build Studio. Same size as a Decor Drawer →
Technical details
STL file · 64 KB
Current
Works with this part
What this part needs, takes and mounts with - each link opens the exact size where the size is fixed, otherwise the matching family.
Required to use this part
Slides into the same-size 185 case - same depth, same width and height.
Optional upgrades
Drawer StoppersFREEKeeps this drawer from pulling all the way out - one Left + Right pair in the outermost positions, snapped into the case above or the Cover Lower over a top row. Extra positions add redundancy.
Magnet InsertsFREEOptional magnetic closure (retention, not a damped close) - one insert clips to the drawer back, one to the case back, and a purchased magnet seats in each. The 10×2 and 6×2 slot sizes are alternatives within one closure, never both (a Gridfinity Decor drawer has the 6×2 slots only); N52 magnets may need only one pair.
Compatible alternatives or customization
Same size with a swappable faceplate front instead of the printed-in grip.
Explicit incompatibilities
Not for drawers - an extended bay takes no standard drawer. Extenders are height spacers for open bays.
