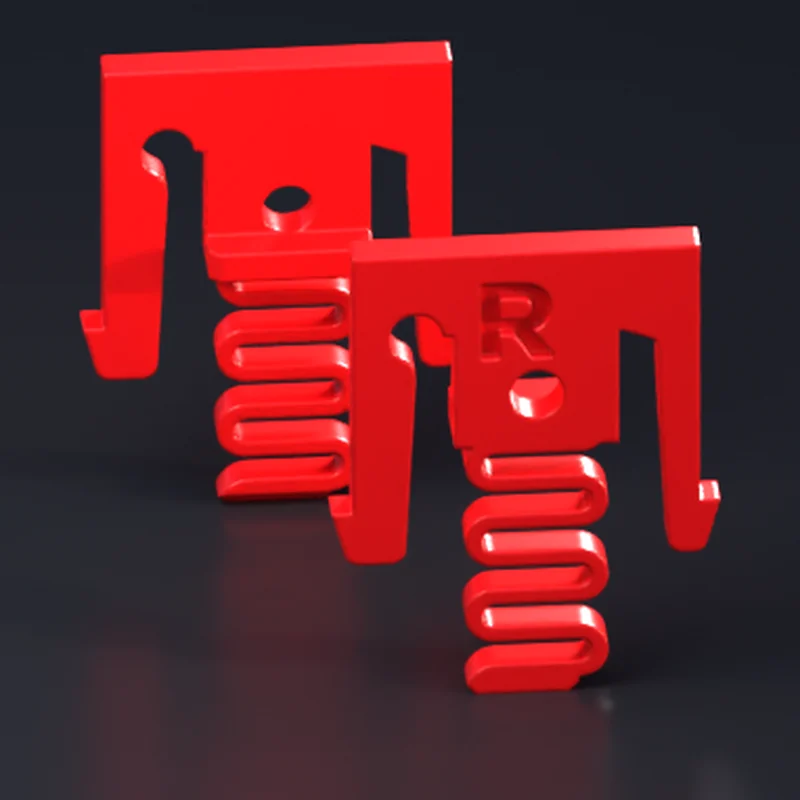

MODULITH QuickLock Bi-Directional
formerly GEN2The QuickLock for a mixed-depth join: it locks a shallower (shorter-depth) case beneath a deeper case or a deeper under-table rail, where the standard pair would keep sliding. Compress it by hand to install; it then locks in both directions. Never the reverse (a deeper case beneath a shallower one), and not for wall builds.
Installation guide: Connect cases and drawers
Customizing: Open Bin Drawer
The QuickLock for a mixed-depth join: it locks a shallower (shorter-depth) case beneath a deeper case or a deeper under-table rail, where the standard pair would keep sliding. Compress it by hand to install; it then locks in both directions. Never the reverse (a deeper case beneath a shallower one), and not for wall builds.
| Print estimate | 1.0 g PETG · 5 minQuickLocks are a compliant mechanism - print them in PETG; PLA loses its spring quickly. Estimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. A small footprint for its height - make sure the first layer is well stuck down. |
|---|---|
| Connects to | A shallower case beneath a deeper case or under-table rail |
In the listing, look for QuickLock B - Bi-Directional (Optional) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guide: Connect cases and drawers
Customizing: Open Bin Drawer
Technical details
STL file · 122 KB
Current
One part in this family
One file covers this part: QuickLock B - Bi-Directional (Optional) (STL)
View the part - 3D preview, print orientation and specs
Works with this part
Universal across collections, for under-table mixed-depth layouts only - a shallower (shorter-depth) case hangs beneath a deeper case or a deeper under-table rail. The shallower case is always below; never reverse the depth order, and never on a wall. Tabletop cross-depth builds use Size Adapter Covers instead.
Not for wall builds - The shallower case loses wall contact and adds cantilever load. Under-table mixed-depth layouts only; use standard QuickLocks in wall-mounted layouts.
Required to use this part
Under-table mixed-depth layouts only - and the join needs both · the shallower case below AND one deeper piece above it, a case or an under-table rail. Find the lower case's collection, then open the deeper collection's cases or rails.
| Shallower case below | Deeper piece above - any of these |
|---|---|
| 59 lower case | 115case·rail165case·rail185case·rail240case·rail270case·rail |
| 115 lower case | 165case·rail185case·rail240case·rail270case·rail |
| 165 lower case | 185case·rail240case·rail270case·rail |
| 185 lower case | 240case·rail270case·rail |
| 240 lower case | 270case·rail |
Compatible alternatives or customization
QuickLock AFREEThe standard pair for every ordinary join - use it everywhere the Bi-Directional placement rule does not apply.
