First time here? MODULITH is a 3D-printable modular storage system. See how it works

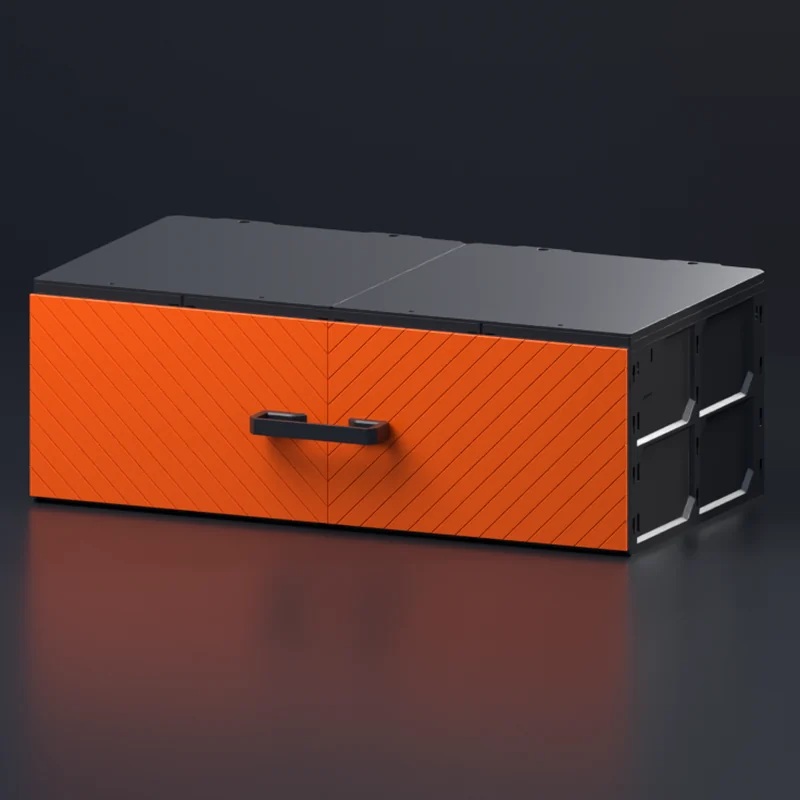

MODULITH Chevron Decor Faceplate - 4W-2H
formerly GEN2
Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
4W-2H = 352mm on the grid (1W = 88mm)
| System size | 4W × 2H |
|---|---|
| Installed size | 352 W × 112 H mm |
| Print estimate | 141 g PLA · 4 h 50 min · 145 g PETG · 5 h 2 minEstimated with a Prusa XL, 0.4 mm HF nozzle, 0.2 mm layer height (too wide for a CORE One bed). standard: 142 g PLA, 4 h 57 min · 146 g PETG, 5 h 9 min |
| Connects to | The front of a Decor drawer of its size |
| Hardware | The bolt-on handle fastens with two M3×6mm button head screws per handle, driven in from behind the plate · the hardware list |
All 18 sizes live in one listing - in it, look for 4W-2H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guide: Decor fronts and handles
Assembly in 3D lives in the 3D Build Studio.
Technical details
The file is in the listing above; this site does not mirror it.
Current
Works with this part
Universal by width and height - the same plate fits any collection's Decor drawer of the same size; each size is its own plate. Bolt-on handle: one separate handle and two M3×6 screws.
Required to use this part
Choose one handle series · 1 per faceplate
Deco HandleFREEExpects one separate handle - every series shares the 44 mm two-hole pattern, so any style fits; two M3×6 button head screws fasten it from behind.
BlockBar HandlesFREEExpects one separate handle - every series shares the 44 mm two-hole pattern, so any style fits; two M3×6 button head screws fasten it from behind.
Crystal HandleFREEExpects one separate handle - every series shares the 44 mm two-hole pattern, so any style fits; two M3×6 button head screws fasten it from behind.
M3×6mm button head screwPURCHASEDFastens the handle to the plate - two per handle, driven in from behind.
Buy on Amazon →Amazon links - I earn a small commission, at no extra cost to you.
Optional upgrades
Closes the interior gap behind the plate and adds rigidity - the same cover serves every faceplate series of this size.
Compatible alternatives or customization
Any of these swap in
Same size, different series - swaps onto the same Decor drawer.
Same size, different series - swaps onto the same Decor drawer.
EdgeLabel Decor Faceplate - 4W-2HCLUB OR PURCHASESame size, different series - swaps onto the same Decor drawer.
Classic Pro Decor Faceplate - 4W-2HCLUB OR PURCHASESame size, different series - swaps onto the same Decor drawer.
