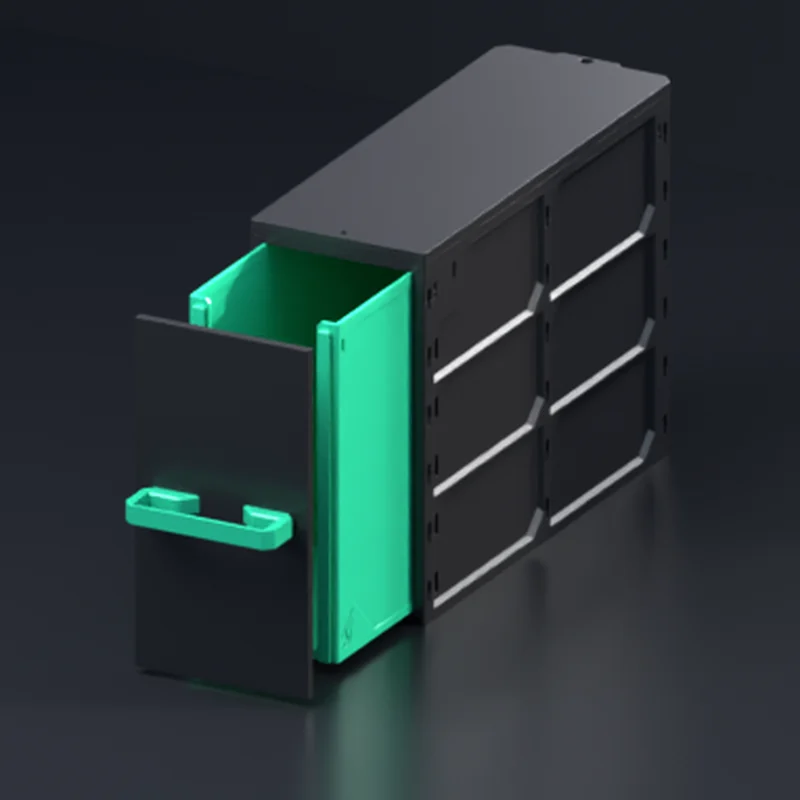

MODULITH 240 Decor Drawer - 1W-3H
formerly GEN2
Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
1W-3H decoded: 240 = collection depth class · 1W = 88mm wide · 3H = 168mm installed height
| System size | 1W × 3H |
|---|---|
| Installed size | 88 W × 168 H × 240 D mm |
| Inside (usable) | 71 × 160 × 226 mm (W×H×D) |
| Print footprint | 88 × 240 mm |
| Print estimate | 193 g PLA · 5 h · 197 g PETG · 5 h 19 minEstimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. no support: 181 g PLA, 4 h 21 min · 185 g PETG, 4 h 36 min |
| Fits case | MODULITH 240 Case - 1W-3H |
| Connects to | MODULITH Rail · QuickLock |
All 18 sizes live in one listing - in it, look for 240-1W-3H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guides: Decor fronts and handles · Tabletop Builds · Under-Table Rails
Customizing: Creating labels
Assembly in 3D lives in the 3D Build Studio. Same size as a Classic Drawer →
Technical details
STL file · 171 KB
Model version v2602 · Current
Works with this part
What this part needs, takes and mounts with - each link opens the exact size where the size is fixed, otherwise the matching family.
Required to use this part
240 Case - 1W-3HFREESlides into the same-size 240 case - same depth, same width and height.
Recommended additions
Choose one faceplate series · 1 per drawer · Expected for a finished drawer - a bare Decor front is possible but not the intended configuration
Fits this drawer's front - the Essential Faceplate series in 1W-3H; every series mounts the same way, so the look can change without reprinting the box.
Fits this drawer's front - the Classic Faceplate series in 1W-3H; every series mounts the same way, so the look can change without reprinting the box.
EdgeLabel Decor Faceplate - 1W-3HCLUB OR PURCHASEFits this drawer's front - the EdgeLabel Faceplate series in 1W-3H; every series mounts the same way, so the look can change without reprinting the box.
Classic Pro Decor Faceplate - 1W-3HCLUB OR PURCHASEFits this drawer's front - the Classic Pro Faceplate series in 1W-3H; every series mounts the same way, so the look can change without reprinting the box.
Chevron Decor Faceplate - 1W-3HCLUB OR PURCHASEFits this drawer's front - the Chevron Faceplate series in 1W-3H; every series mounts the same way, so the look can change without reprinting the box.
Optional upgrades
Optional behind the faceplate - closes the front gap and stiffens the plate.
Drawer StoppersFREEKeeps this drawer from pulling all the way out - one Left + Right pair in the outermost positions, snapped into the case above or the Cover Lower over a top row. Extra positions add redundancy.
Magnet InsertsFREEOptional magnetic closure (retention, not a damped close) - one insert clips to the drawer back, one to the case back, and a purchased magnet seats in each. The 10×2 and 6×2 slot sizes are alternatives within one closure, never both (a Gridfinity Decor drawer has the 6×2 slots only); N52 magnets may need only one pair.
Compatible alternatives or customization
Same size with the grip printed in - nothing to assemble, nothing to buy.
Choose one handle series · Only with an Essential or Chevron faceplate - Classic, EdgeLabel, and Classic Pro print their grip in
Deco HandleFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
BlockBar HandlesFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
Crystal HandleFREEBolts onto an Essential or Chevron faceplate on this drawer - one handle of any series, two M3×6 screws.
Explicit incompatibilities
Not for drawers - an extended bay takes no standard drawer. Extenders are height spacers for open bays.
