MODULITH Wall Mount Bracket - 3W section
formerly GEN2

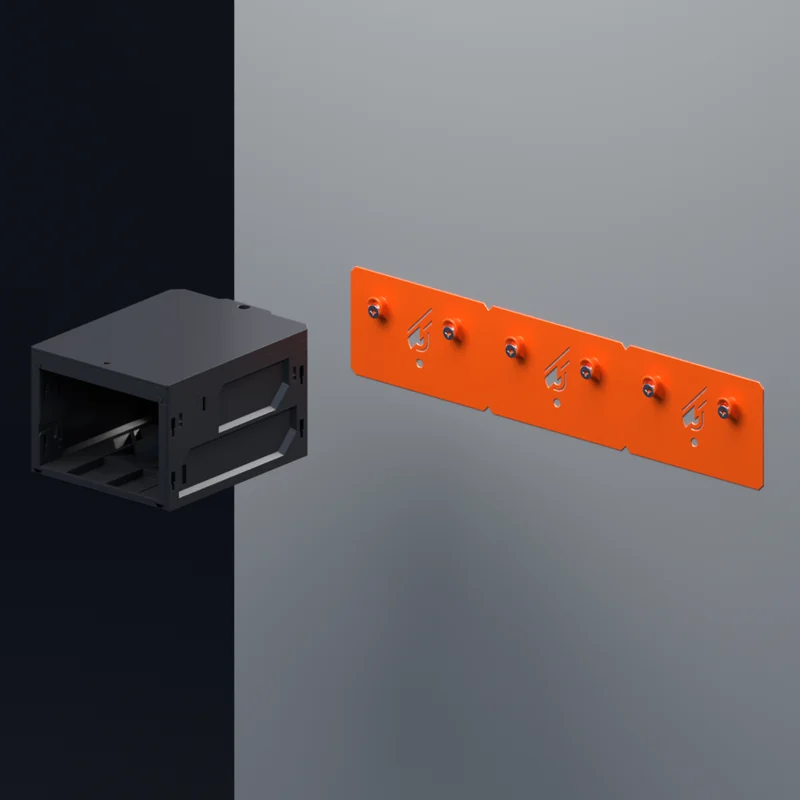

Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
Sectional wall brackets in 1W / 2W / 3W - combine to match any case width, screw them to the wall, and cases hang on the pegs. One bracket set serves every collection; needs wood screws.
3W = 264mm on the grid (1W = 88mm)
| System size | 3W |
|---|---|
| Installed size | 264 W mm |
| Print estimate | 8.9 g PLA · 22 min · 9.2 g PETG · 24 minEstimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. |
| Connects to | The wall (wood screws) and case backs |
| Hardware | Mounts with wood screws - 2 per 1W column; screw length and anchors depend on the wall material · the hardware list |
All 3 sizes live in one listing - in it, look for 3W in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guide: Wall Mount Lite
How it works: Rules for wall and under-table builds
Technical details
All three section widths ship inside the Wall Mount Kit - Lite listing.
Current
Works with this part
Universal - modular rails for any collection at any depth; bracket width need not match the case. Cases 1H and taller mount directly; a 0.5H case hangs beneath a wall-supported case of the same collection.
Not with Bi-Directional QuickLocks - Unsupported in wall-mounted layouts - the shallower case loses wall contact. Use standard QuickLocks on a wall.
Required to use this part
One of these hosts
Cases 1H and taller hang on the pegs directly, any collection and any depth - bracket width need not match the case.
Case extenders mount directly too - they carry the same rear interface as a case.
Countersunk wood screws (#6/#8)PURCHASEDFixes the bracket to the wall - two per 1W. Screw length and anchors depend on the wall material.
