MODULITH QuickLock

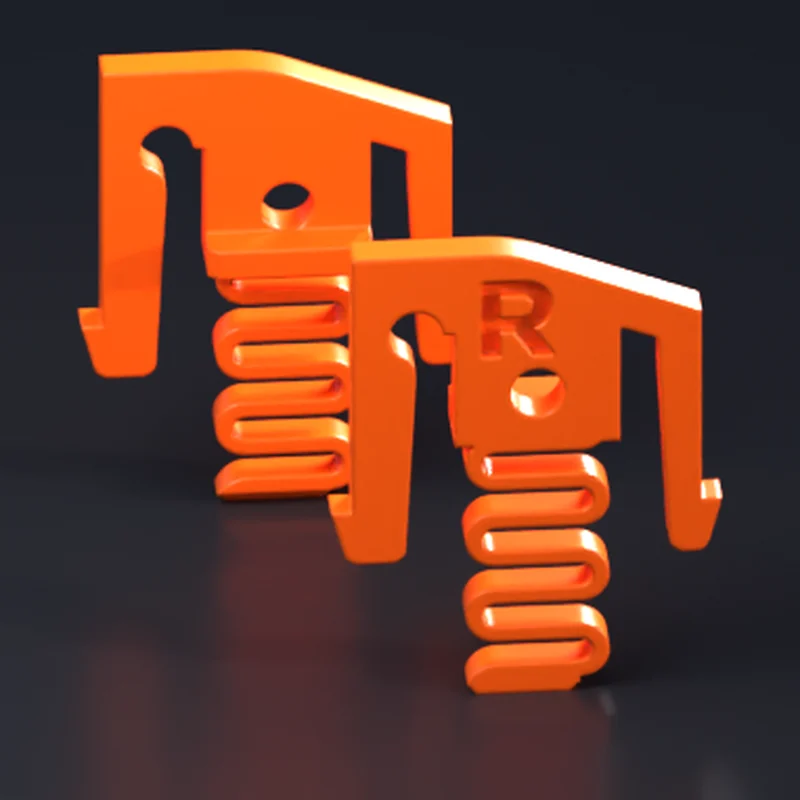

formerly GEN2The connector the system rides on - every case takes one Left and one Right, locking to its neighbors side by side and stacked. No screws between cases; a build comes apart the same way it went together.
Installation guides: Under-Table Rails · Connect cases and drawers · Wall Mount Lite · Tabletop Builds
Customizing: Open Bin Drawer
How QuickLock works

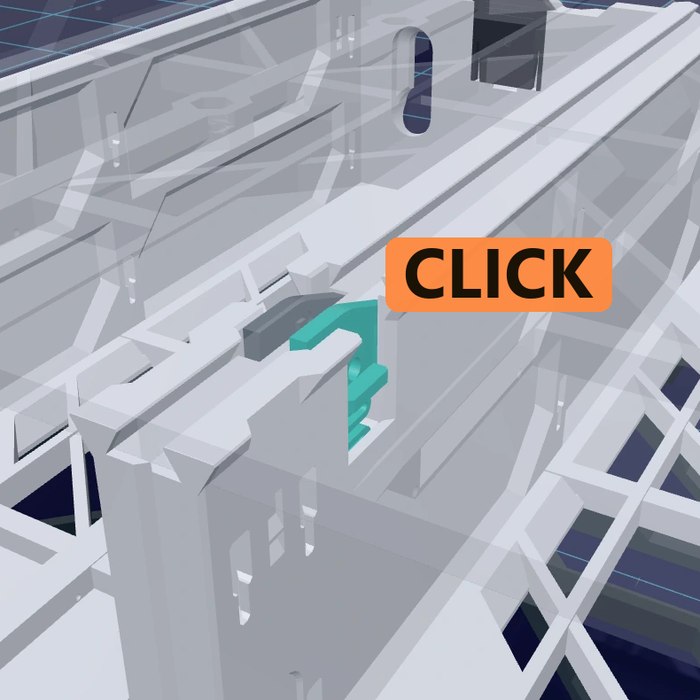

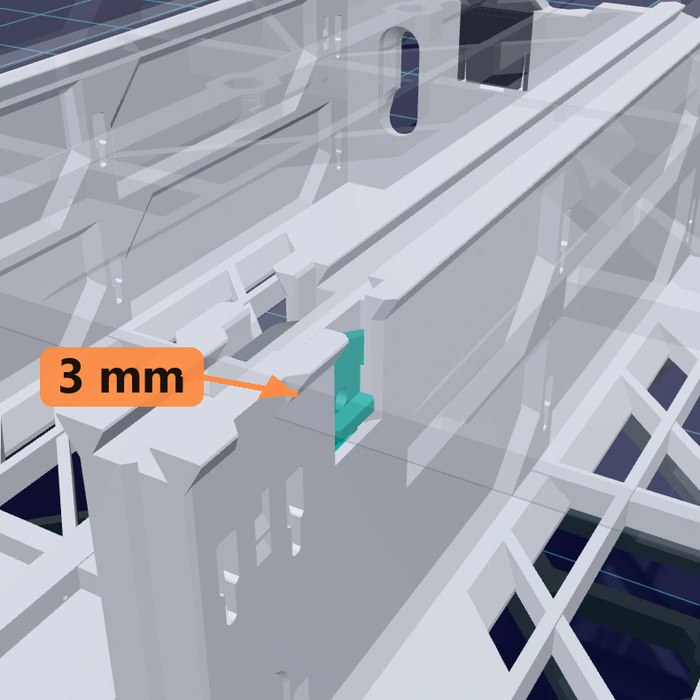

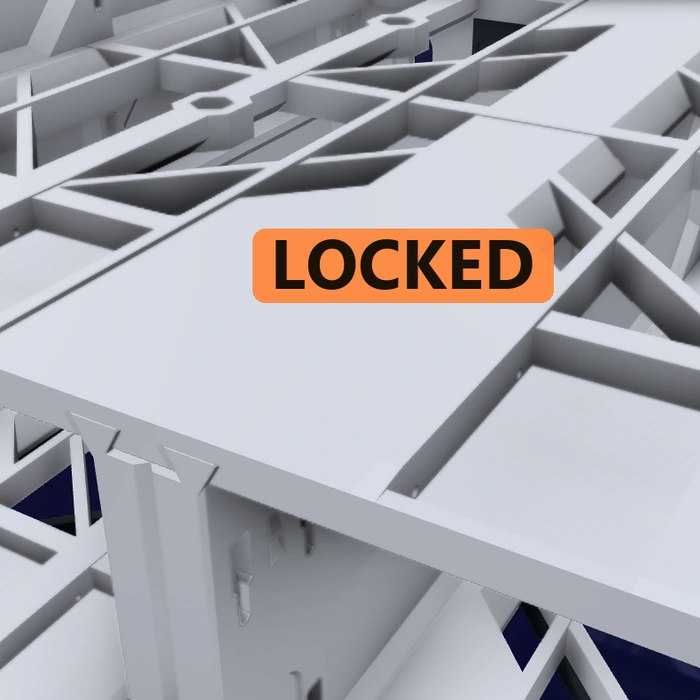

Each case wall takes one QuickLock - drop it straight into the channel and the printed serpentine spring seats it. Slide the next case on: the case presses the tab down 3 mm as it passes, and at full seat the spring snaps the tab up into the keyhole - that click is the lock. No screws between cases, and pressing the tab releases it just as fast.
Colors are diagram highlights - teal marks the mechanism, and the x-ray view exposes what the solid case hides. Print yours in any filament.
Shows the main printed body in its recommended print orientation - separate pieces (labels, accents) and removable print aids aren't included.
The connector the system rides on - every case takes one Left and one Right, locking to its neighbors side by side and stacked. No screws between cases; a build comes apart the same way it went together.
| Print estimate | 0.9 g PETG · 4 min per print - one print makes a Left and a RightQuickLocks are a compliant mechanism - print them in PETG; PLA loses its spring quickly. Estimated with a Prusa CORE One, 0.4 mm HF nozzle, 0.2 mm layer height. A small footprint for its height - make sure the first layer is well stuck down. |
|---|---|
| Connects to | Cases - side and stacked joins |
In the listing, look for QuickLock A in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Installation guides: Under-Table Rails · Connect cases and drawers · Wall Mount Lite · Tabletop Builds
Customizing: Open Bin Drawer
Technical details
STL file · 151 KB
Model version V1-11 · Current
One part in this family
One file covers this part: QuickLock A (STL)
View the part - 3D preview, print orientation and specs
Works with this part
Universal - one print fits every case and extender in every collection; the rule is one Left and one Right per case, locking it to whatever sits above.
Required to use this part
One of these hosts
Installs in every case of every collection and locks it to whatever sits above - a case, a cover, an extender, or a rail.
Installs in a case extender too and locks it to what sits above, exactly the way it locks a case.
Compatible alternatives or customization
The variant for an under-table mixed-depth layout - a shallower case hanging beneath a deeper case or rail; compress by hand to install, locks in both directions.
Locks a case up into an under-table rail.
Locks a case or extender to the cover above it.
